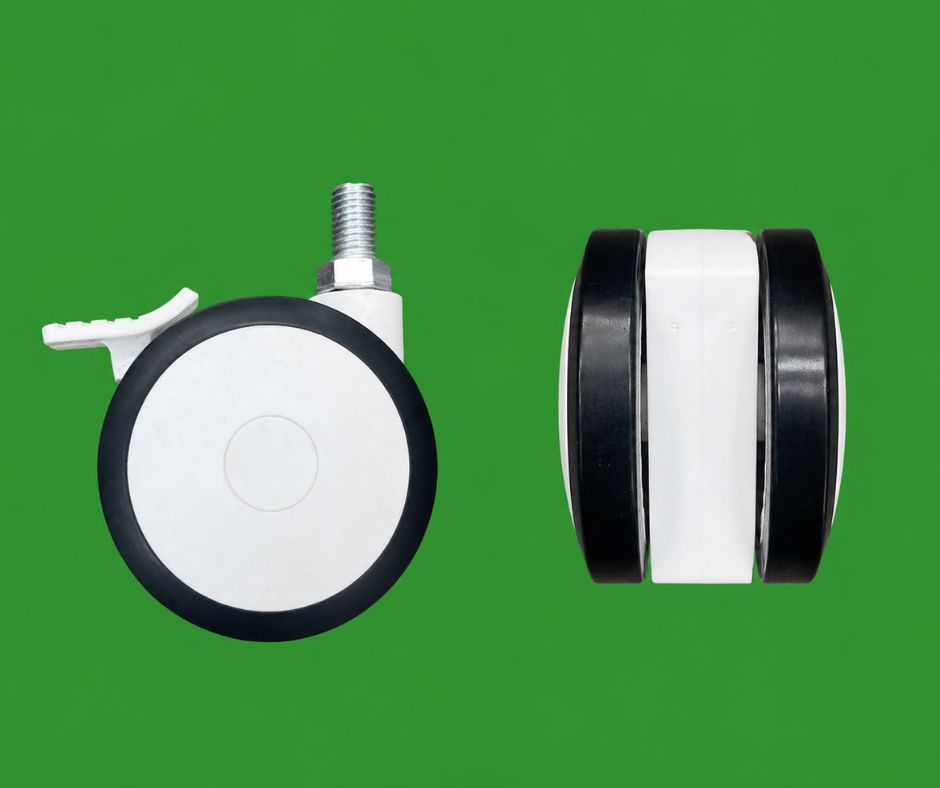

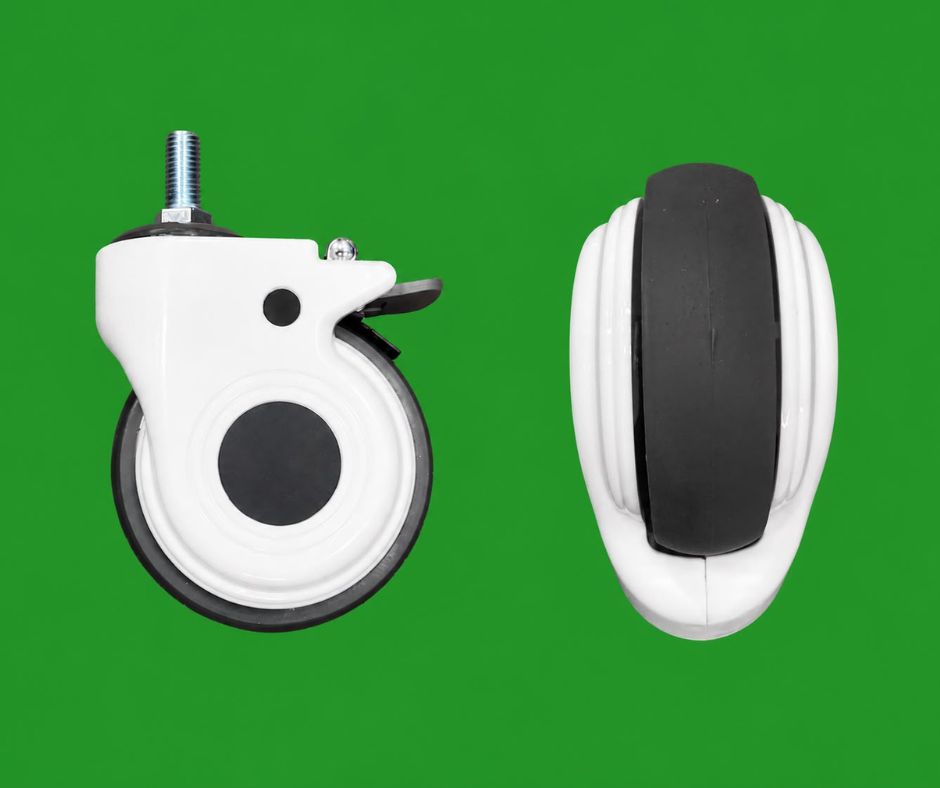

Threaded Stem Twin Wheel Swivel Caster with Total Lock Brake
Are you looking for Medical bed or shopping Cart wheel? we Ahmed Engineer have it call us.
Product Information
Item
Specification
Product Name
Twin Wheel Swivel Caster
Model
AE-TWC75B
Brand
Ahmed Engineering
Type
Threaded Stem Swivel Caster with Brake
Wheel Configuration
Twin Wheel
Swivel Rotation
360°
Brake Type
Total Lock Foot Brake
Mounting Type
Threaded Stem
Bearing Type
Precision Ball Bearing
Application
Industrial, Medical, Textile Machinery, Furniture
Overall Dimensions
Parameter
Dimension
Wheel Diameter (D)
75 mm (3″)
Twin Wheel Width (W)
50 mm
Individual Wheel Width
20 mm
Overall Wheel Width
50 mm
Total Height (H)
105 mm
Swivel Head Diameter
40 mm
Swivel Offset
28 mm
Brake Pedal Length
42 mm
Brake Pedal Width
15 mm
Brake Pedal Height
18 mm
Threaded Stem Dimensions
Parameter
Dimension
Thread Size
M12 × 1.75
Thread Length
25 mm
Stem Diameter
12 mm
Hex Nut Size
19 mm AF
Optional thread sizes:
M8 × 1.25
M10 × 1.5
M12 × 1.75
3/8″-16 UNC
Wheel Dimensions
Parameter
Dimension
Wheel Diameter
75 mm
Wheel Width
20 mm each
Hub Width
10 mm
Twin Wheel Gap
8 mm
Tread Thickness
6 mm
Materials
Component
Material
Wheel Core
Polypropylene (PP)
Tread
Thermoplastic Rubber (TPR)
Fork Housing
Zinc-Plated Steel
Stem
Carbon Steel
Brake Lever
Reinforced Nylon
Bearings
Steel Ball Bearing
Dust Cover
ABS Plastic
Mechanical Performance
Property
Value
Load Capacity
60 kg per caster
Dynamic Load
50 kg
Static Load
80 kg
Swivel Rotation
360°
Brake Efficiency
Wheel & Swivel Lock
Operating Temperature
-20°C to +70°C
Finish
White PP Wheel
Black TPR Tread
Zinc-Plated Steel Fork
White Nylon Brake Lever
Features
Twin wheel construction for improved stability
Smooth and silent rolling
Floor protection
Non-marking wheels
Corrosion-resistant hardware
Precision swivel bearing
Easy foot-operated brake
Long service life
Maintenance-free operation
Applications
Textile Machinery
Hospital Equipment
Laboratory Instruments
Medical Trolleys
Industrial Carts
Office Furniture
Computer Cabinets
Mobile Storage Units
Retail Display Equipment
Light Industrial Equipment
Dimensional Drawing
M12 Thread
│
│25
______│______
| |
| Swivel Head |
|_____________|
│
┌─────────────────┐
│ │
│ Fork │
│ │
└─────────────────┘
◉────────────◉
Twin 75 mm Wheels
Overall Height = 105 mm
Wheel Diameter = 75 mm
Overall Width = 50 mm
Performance
Noise Level: Low
Rolling Resistance: Low
Chemical Resistance: Good
Abrasion Resistance: Excellent
Indoor Use: Excellent
Outdoor Use: Good
Quality Standards
RoHS Compliant Materials
ISO 9001 Manufacturing Process
Precision Bearing Assembly
100% Functional Testing Before Dispatch
Ordering Code
Model
Wheel Size
Load Capacity
Stem
AE-TWC50B
50 mm
40 kg
M10
AE-TWC65B
65 mm
50 kg
M10
AE-TWC75B
75 mm
60 kg
M12
AE-TWC100B
100 mm
80 kg
M12
