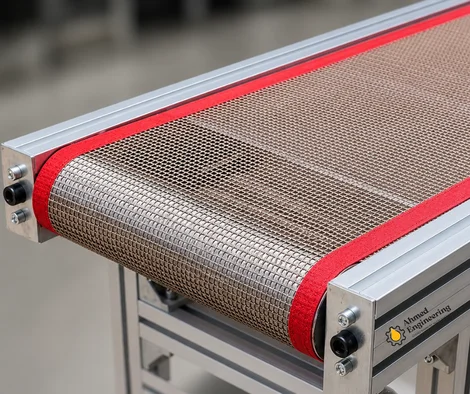

PTFE Mesh Conveyor Belt
PTFE Coated Open Mesh Conveyor Belts (High Temperature Resistant Conveyor Mesh Belt)
Introducing premium PTFE Coated Open Mesh Conveyor Belts — engineered for high-temperature processing, superior non-stick performance, durability, and breathability. These belts are manufactured from high-quality PTFE Coated Glass Cloth reinforced with fiberglass mesh, offering excellent thermal stability and strength for industrial conveyor applications.
PTFE (polytetrafluoroethylene), commonly known by the trade name Teflon, creates an outstanding coating on open mesh fiberglass fabric. This results in a belt that is ideal for thermal processing, drying, baking, and material transport across industries like food processing, textiles, printing, chemical processing, electronics, paper, and more.
What Is a PTFE Belt?
A PTFE belt is a conveyor belt made from PTFE-coated fabric or mesh that provides a low-friction, high-temperature resistant surface for conveying materials through ovens, dryers, or heat-processing lines. These belts combine the non-stick nature of PTFE with the mechanical strength of fiberglass mesh.
পিটিএফই বেল্ট কি?
পিটিএফই বেল্ট একটি বিশেষ বেল্ট যা PTFE-coated কাপড় বা মেশ থেকে তৈরি, এবং এতে উচ্চ তাপমাত্রা সহ্য করার ক্ষমতা ও কম ঘর্ষণ থাকে – বিশেষত গরম বা ড্রাইং প্রক্রিয়ায় ব্যবহারের জন্য।
What Is PTFE Mesh Used For?
PTFE mesh provides controlled porosity that allows airflow while conveying materials. It’s widely used for:
-
Industrial drying conveyors
-
Screen printing dryers
-
Textile and dyeing oven belts
-
Food baking and packaging lines
-
Heat processing applications requiring high heat tolerance
This porous structure improves heat transfer and drying efficiency.
পিটিএফই উপাদান কি জন্য ব্যবহৃত হয়?
PTFE উপাদান তার অতি-নিম্ন ঘর্ষণ, উচ্চ তাপ সহ্যকারী এবং অ-আঠালো বৈশিষ্ট্যের কারণে খাদ্য প্রক্রিয়াকরণ, প্রিন্টিং ও ড্রাইং, প্যাকেজিং এবং অন্যান্য অনেক শিল্পে ব্যবহৃত হয়।
🔹 Key Features
-
High Temperature Resistance
Operates continuously in temperatures up to 260°C without deformation or performance loss. -
Excellent Air Permeability
Open mesh structure ensures superior airflow, reduces heat loss, and increases drying efficiency. -
Outstanding Chemical Resistance
Resistant to most industrial chemicals, acids, and solvents. -
Non-Stick Surface (Anti-Adhesion)
Smooth PTFE coating allows easy release of resin, paint, glue, chemicals, and other sticky materials. -
High Tensile Strength & Flexibility
Strong glass fiber reinforcement provides excellent tensile strength and bending fatigue resistance, suitable for small rollers and continuous operation. -
Multiple Mesh Sizes Available
Mesh options: 1×1 mm, 2×2.5 mm, 4×4 mm, 8×8 mm, 10×10 mm -
Wide Belt Capability
Maximum belt width up to 5 meters, customizable as per industrial requirement.
🔹 Product Description
PTFE Coated Open Mesh Conveyor Belts are manufactured using high-performance glass fiber mesh impregnated with premium polytetrafluoroethylene (PTFE) emulsion. This advanced composite material offers exceptional durability, heat resistance, and non-stick performance, making it suitable for demanding industrial environments.

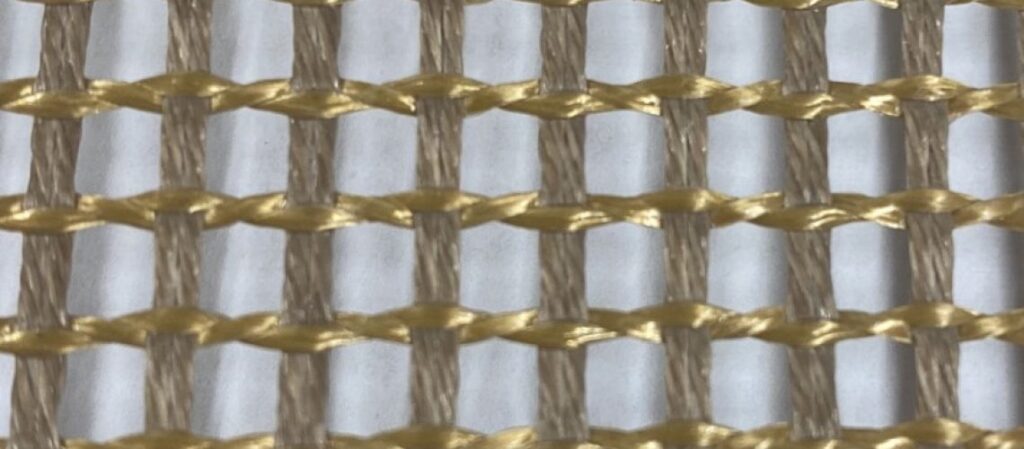

PTFE Conveyor Belt Materials
Ahmed Engineering supplies high-quality PTFE coated fiberglass conveyor belts manufactured with premium industrial-grade materials for maximum durability and heat resistance.
Main Belt Materials
- PTFE Coated Fiberglass Fabric
Provides excellent heat resistance, non-stick surface, chemical resistance, and dimensional stability. - Kevlar Reinforced PTFE Belt
Designed for high tensile strength and heavy-duty industrial applications. - PTFE Open Mesh Fabric
Allows better airflow and faster drying efficiency for textile and printing industries. - Food Grade PTFE Material
Suitable for food processing and hygienic production environments.
These materials ensure long service life even in continuous high-temperature operation.
Joints

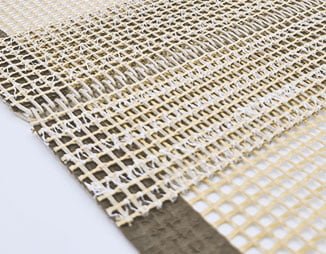

Bullnose joint
The Bullnose Joint is the most commonly used joint system for PTFE mesh conveyor belts. It is specially designed to maintain proper airflow through the belt, making it ideal for drying and heating applications. The bullnose can be stitched around the belt ends as an outer wrap or sewn underneath the belt to provide a smoother conveying surface and improved product movement.

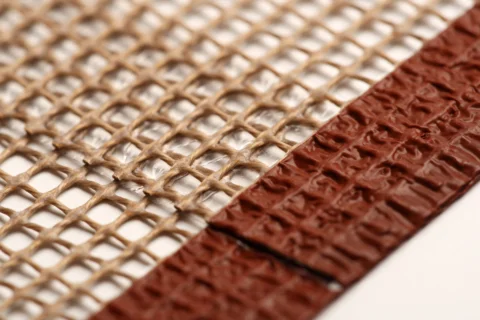

Overlap joint
The Overlap Joint is one of the simplest and most economical joint types used in PTFE conveyor belts. In this joint system, both ends of the belt are overlapped and bonded together using a thin sealing film between the layers, creating a strong and reliable connection for smooth belt operation.

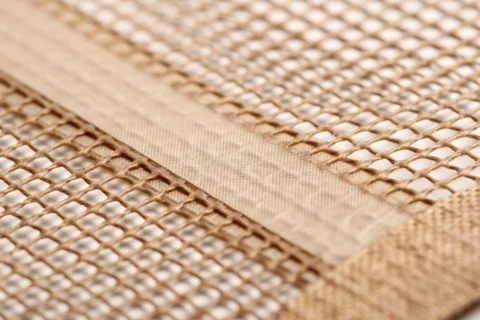

Butt joint
In a Butt Joint, both ends of the PTFE belt are connected edge-to-edge without any overlap, creating a flatter and smoother belt surface. The overall joint strength and thickness depend on the type and quality of the top and bottom reinforcement plasters used during the joining process.

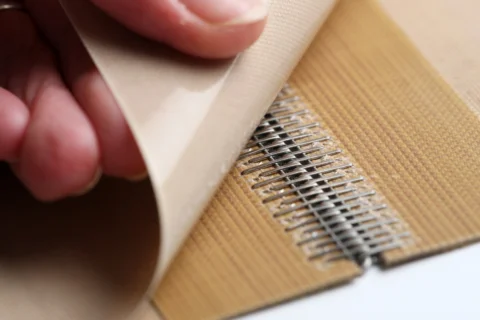

A36 metal clip joint with cover flap
In certain industrial applications, a cover flap is added to protect the metal clipper joint from direct contact with machine parts or products. This helps prevent wear marks on the machine surface and reduces the possibility of products sticking to the belt joint during operation.

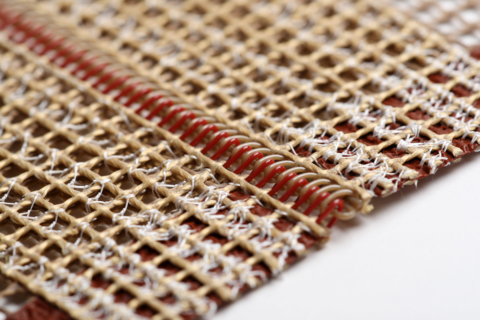

PEEK spiral joint
Our PEEK Spiral Joint is a highly air-permeable joint system specially designed for PTFE mesh conveyor belts. It ensures excellent airflow and smooth belt performance in drying and heating applications. For wider belts, a stronger and more robust joint construction is used to provide improved durability, stability, and long-term operational reliability.

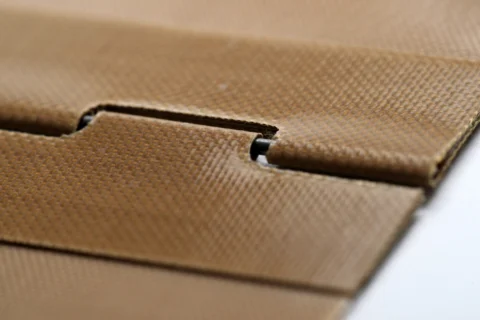

Castellated joint
The Castellated Joint is fully manufactured using PTFE coated fabric, ensuring a completely non-metallic joint construction. This design prevents the conveyed product from coming into contact with any other material, making it ideal for sensitive processing applications requiring a clean, smooth, and contamination-free conveying surface.
A36 metal clipper joint
The A36 Metal Clip Joint works similarly to a zipper system. The metal clips are securely pressed into both reinforced ends of the PTFE belt, allowing the two ends to fit together precisely once installed in the machine. This joint design provides strong belt connection, easy installation, and reliable performance during operation.

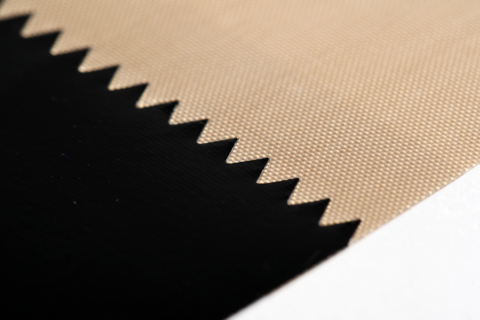

5×7 finger joint
Our 5×7 Finger Joint features small interlocking fingers that allow easy and accurate belt assembly. Unlike a standard butt joint, this design eliminates a straight break line, providing improved strength, flexibility, and enhanced durability for long-term industrial operation.

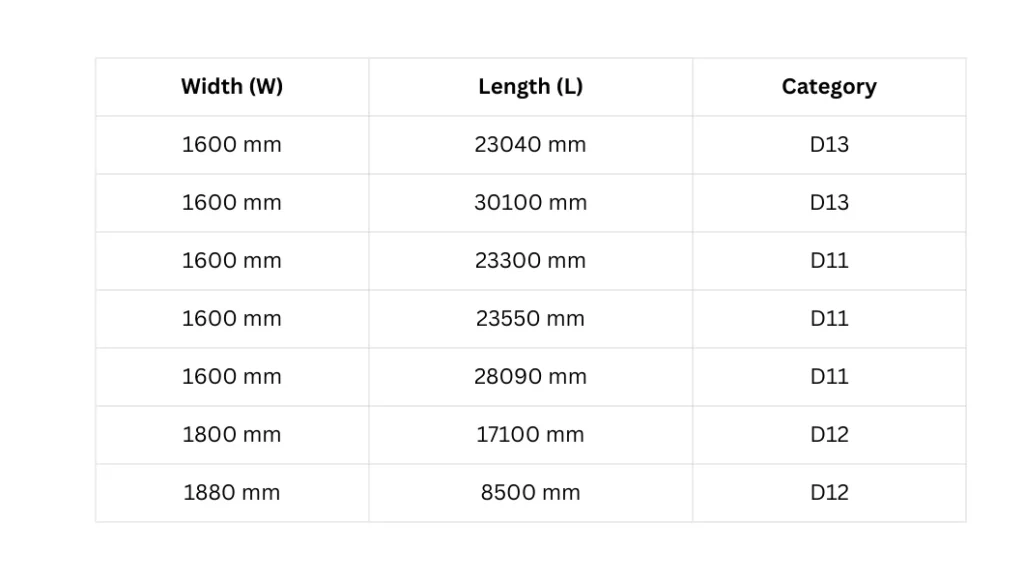

PTFE mesh belt sizes
Product Sizes & Categories — PTFE Open Mesh Conveyor Belts most commonly use in Bangladesh.

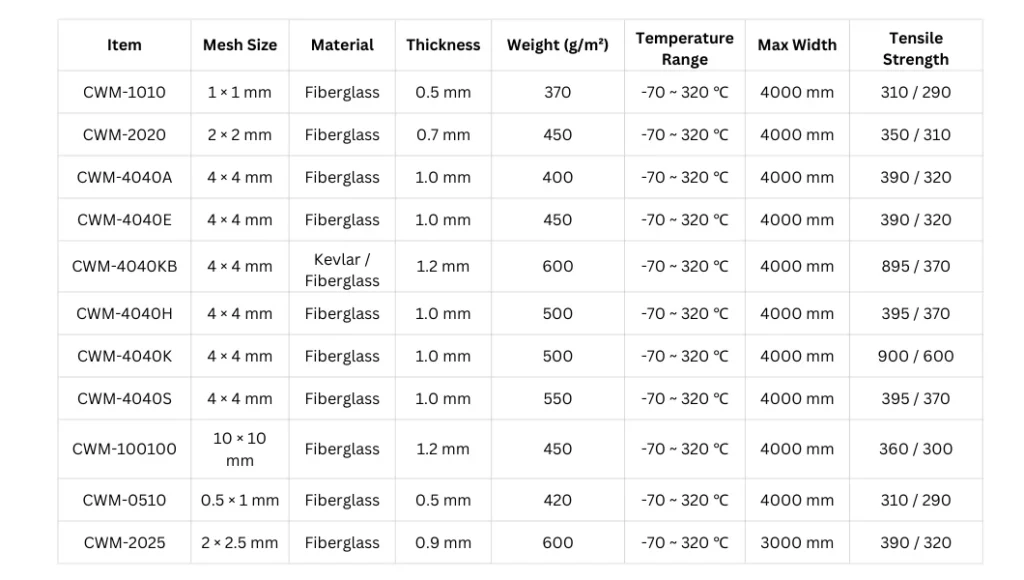

PTFE Coated Open Mesh Conveyor Belt – Technical Specifications
🔹 Applications
-
Non-woven fabric dryers
-
Textile printing & dyeing machines
-
Screen printing machines
-
Fabric shrinking machines
-
High-frequency dryers & UV dryers
-
Hot air drying conveyor systems
-
Food baking & quick freezing machines
-
Paper glazing & oiling machines
-
Cardboard production lines
-
Pharmaceutical press belts
-
Electronics & insulation industries
-
Mechanical heat sealing equipment
Ahmed Engineering supplies high-quality PTFE Mesh Conveyor Belts designed for textile, food processing, paper, and industrial applications across Bangladesh.
Why Choose These PTFE Mesh Conveyor Belts?
Manufactured with precision and durable materials like PTFE laminated fabric on fiberglass mesh, these belts offer unmatched performance for high heat and continuous industrial use. Their design ensures:
✔ Excellent airflow and drying efficiency
✔ Minimal heat loss and higher energy efficiency
✔ Reliable, long-lasting performance
✔ Easy maintenance and cleaning
Whether you’re seeking PTFE Coated Glass Cloth belts for textile dryers or non-stick belts for food-grade ovens, these conveyor belts deliver superior performance and value.
Read more
Our PTFE Mesh Conveyor Belt is a high-performance industrial conveyor belt made from PTFE (Teflon) coated fiberglass mesh. Engineered for demanding applications, it offers excellent non-stick properties, dimensional stability, and thermal performance, making it an ideal solution for drying, heat processing, food handling, and printing applications in diverse industries.
Key Features & Benefits
✔ Superior Heat & Chemical Resistance
The PTFE mesh belt can withstand wide temperature ranges with excellent stability and long service life. It resists chemical corrosion and adheres to almost all substances — perfect for food processing, textile drying, and industrial heat treatment.
✔ Non-Stick Surface (Low Coefficient of Friction)
The Teflon surface prevents material build-up, reducing cleaning time and downtime. This makes it especially valuable where sticky resins, adhesives, paints, or coatings are processed.
✔ Breathable Open Mesh Structure
The open mesh design enhances airflow during drying operations, improving heat distribution and drying efficiency while reducing energy consumption.
✔ Excellent Dimensional & Mechanical Stability
The fiberglass mesh base provides consistent strength and resistance to elongation, making the belt suitable for continuous processes and high-load operations.
✔ Customization & Service Support
Available in multiple mesh models and materials (including fiberglass and Kevlar mesh), with options for tailored design, edge finishing, and splice types to suit specific equipment and applications.
Technical Specifications
| Property | Details |
|---|---|
| Material | PTFE Coated Fiberglass Mesh (Teflon) |
| Structure | Open mesh conveyor belt |
| Mesh Types | Plain weave, 4×4, large and small meshes |
| Base Fabrics | Fiberglass, Kevlar |
| Product Grades | Standard, Premium, Professional |
| Features | Non-stick, chemical resistant, heat tolerant, breathable |
Note: Custom widths, lengths, and joint types (e.g., joint line, seam options) are available on request.
Typical Applications
PTFE mesh conveyor belts serve a wide range of industrial uses, including:
- Drying tunnel conveyor belts – enabling efficient airflow and moisture removal.
- Paper drying conveyor belts – for consistent heat exposure in paper dryers.
- Microwave & hot-air drying systems – maintaining dimensional stability at high temperatures.
- Food baking and cooling conveyors – non-stick, easy to clean, and FDA-friendly.
Industry Uses
This product is widely used across sectors such as:
Textile printing & dyeing, screen printing, food processing, chemical industries, glass & electronics manufacturing, and pharmaceutical pressing lines — wherever heat, airflow, or non-stick conveyor performance is essential.
Why Choose Our PTFE Mesh Conveyor Belts
- Durable & long-lasting performance
- Energy-efficient open mesh design
- Wide temperature tolerance
- Resistant to corrosion & sticky materials
- Custom design & rapid production available
- Suitable for high-speed automated systems
Get a Quote
Looking for PTFE mesh conveyor belts in custom dimensions (e.g., widths up to 1800 mm, lengths to match specific machines) or in Bangladesh? Contact us today for pricing, technical specs, and high-resolution product photos.
